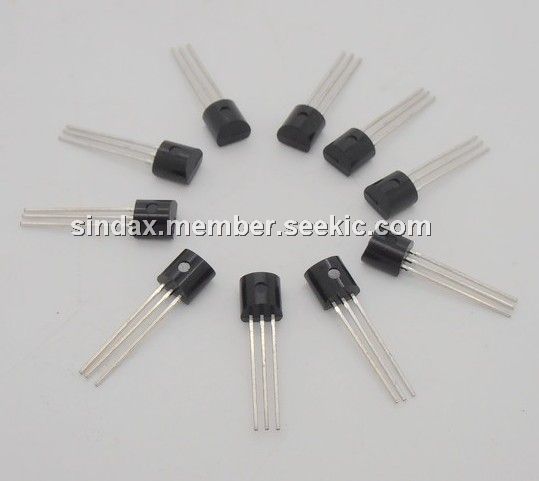

Product Summary

The LM35D is a precision integrated-circuit temperature sensor, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35 thus has an advantage over linear temperature sensors calibrated in ° Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35D is available packaged in hermetic TO-46 transistor packages, while the LM35C, LM35CA, and LM35D are also available in the plastic TO-92 transistor package. The LM35D is also available in an 8-lead surface mount small outline package and a plastic TO-220 package.

Parametrics

LM35D absolute maximum ratings: (1)Supply Voltage: +35V to −0.2V; (2)Output Voltage: +6V to −1.0V; (3)Output Current: 10 mA; (4)Storage Temp.; TO-46 Package, −60°C to +180°C, TO-92 Package, −60°C to +150°C, SO-8 Package, −65°C to +150°C, TO-220 Package, −65°C to +150°C; (5)Lead Temp.: TO-46 Package, (Soldering, 10 seconds)300°C, TO-92 and TO-220 Package, (Soldering, 10 seconds)260°C, SO Package Vapor Phase (60 seconds)215°C, Infrared (15 seconds)220°C; (6)ESD Susceptibility: 2500V.

Features

LM35D features: (1)Calibrated directly i° Celsius (Centigrade); (2)Linear + 10.0 mV/°C scale factor; (3)0.5°C accuracy guaranteeable (at +25°C); (4)Rated for full −55° to +150°C range; (5)Suitable for remote applications; (6)Low cost due to wafer-level trimming; (7)Operates from 4 to 30 volts; (8)Less tha60 μA current drain; (9)Low self-heating, 0.08°C istill air; (10)Nonlinearity only ±1⁄4°C typical; (11)Low impedance output, 0.1 W for 1 mA load.

Diagrams

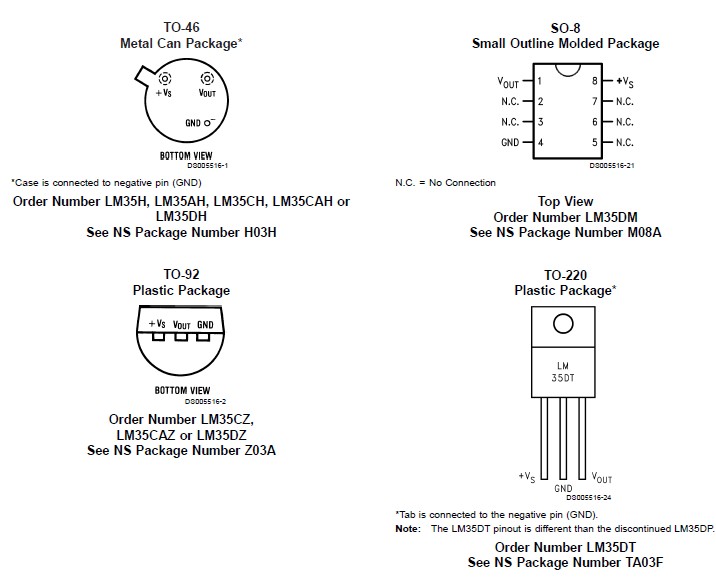

LM35D pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM35DH
LM35DH
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-1000: $3.34
LM35DH/NOPB
LM35DH/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-647: $3.98
647-1000: $3.47
LM35DM
LM35DM
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-665: $0.61
665-1045: $0.44
1045-2565: $0.41
2565-5035: $0.39
LM35DM/NOPB
LM35DM/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors PREC CENTIGRADE TEMP SENSOR
Data Sheet
0-1: $1.02
1-25: $0.81
25-100: $0.71
100-250: $0.62
LM35DMX
LM35DMX
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-2500: $0.41
2500-5000: $0.39
5000-10000: $0.36
LM35DMX/NOPB
LM35DMX/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors PREC CENTIGRADE TEMP SENSOR
Data Sheet
0-1: $1.10
1-25: $0.87
25-100: $0.78
100-250: $0.68
LM35DT
LM35DT
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-1: $1.69
1-25: $1.36
25-100: $1.22
100-250: $1.09
LM35DT/NOPB
LM35DT/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors PREC CENTIGRADE TEMP SENSOR
Data Sheet
0-1: $1.40
1-25: $1.12
25-100: $1.01
100-250: $0.90
