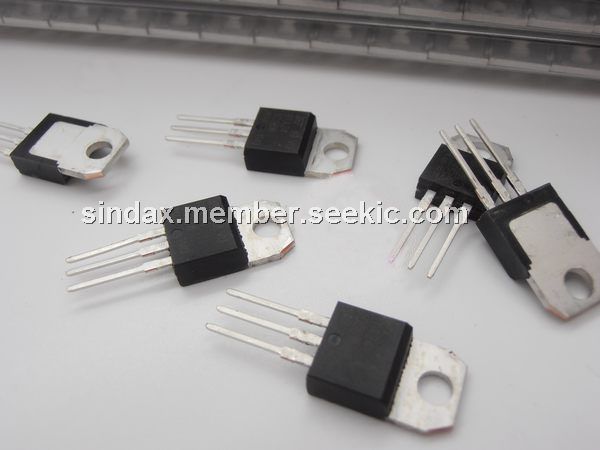

Product Summary
The bta24-800bw is a 25A triacs. Available either in through-hole or surface-mount packages, the bta24-800bw 25A triac is suitable for general purpose AC switching. The snubberless versions are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500VRMS) complying with UL standards.
Parametrics
bta24-800bw absolute maximum ratings: (1)IT(RMS)RMS on-state current (full sine wave): 25 A; (2)ITSM: 260A; (3)I2t I2t Value for fusing tp = 10 ms: 340 A2s; (4)dI/dt Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns F = 120 Hz Tj = 125° C: 50 A/μs; (5)IGM Peak gate current tp = 20 μs Tj = 125° C: 4 A; (6)PG(AV)Average gate power dissipation Tj = 125° C: 1 W; (7)Tstg Storage junction temperature range: - 40 to + 150°C; (8)Tj Operating junction temperature range: - 40 to + 125° C.
Features
bta24-800bw features: (1)IT(RMS): 25 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT (Q1): 35 to 50 mA.

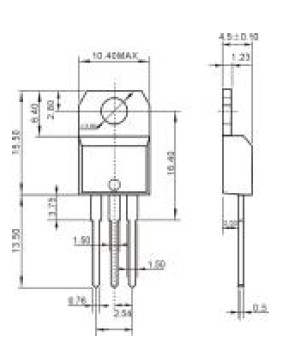

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA24-800BW |
STMicroelectronics |
Triacs 25 Amp 800 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
BTA24-800BWRG |
STMicroelectronics |
Triacs 25 AMP 800 VOLT |
Data Sheet |
|
|
||||||||||||
