Product Summary

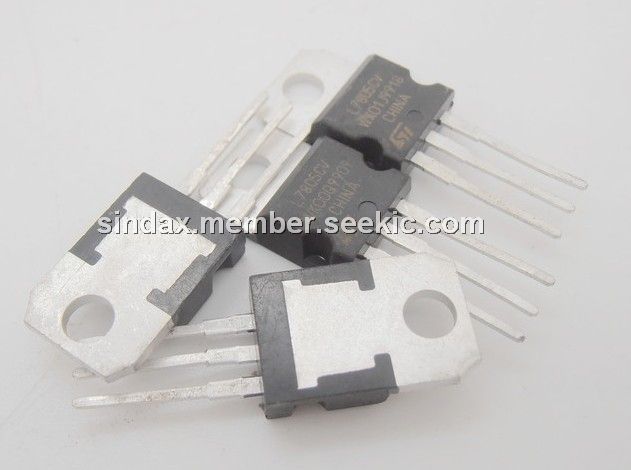

The L7805 is a three-terminal positive regulator. The L7805 is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7805 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7805 absolute maximum ratings: (1)VI DC Input Voltage for VO= 5 to 18V: 35 V; (2)for VO= 20, 24V: 40V; (3)IO Output Current: Internally Limited; (4)Ptot Power Dissipation: Internally Limited; (5)Tstg Storage Temperature Range: -65 to 150 °C; (6)Top Operating Junction Temperature Range: -55 to 150 °C.
Features
L7805 features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7805 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
L7805ABD2T |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L7805ABD2T-TR |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
|
L7805ABP |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
|
L7805ABV |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
|
L7805ACD2T |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
 |
L7805AC-D2TR |
|
IC REG LDO 5V 1.5A D2PAK |
Data Sheet |
|
|
||||||||||||
|
L7805ACD2T-TR |
STMicroelectronics |
Linear Regulators - Standard 5.0V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
